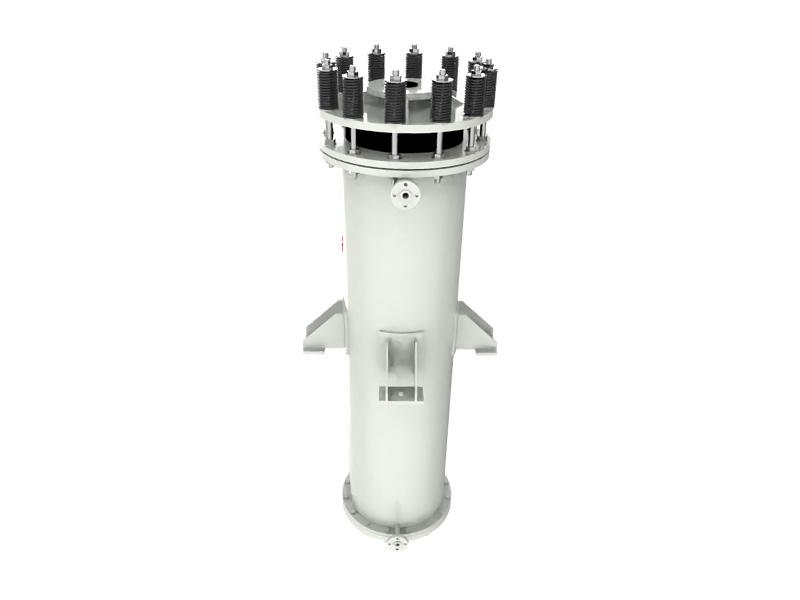

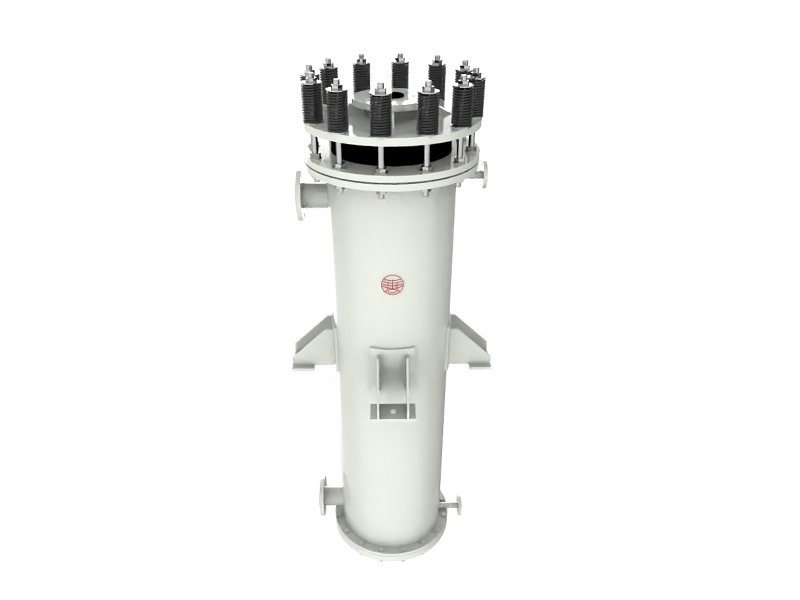

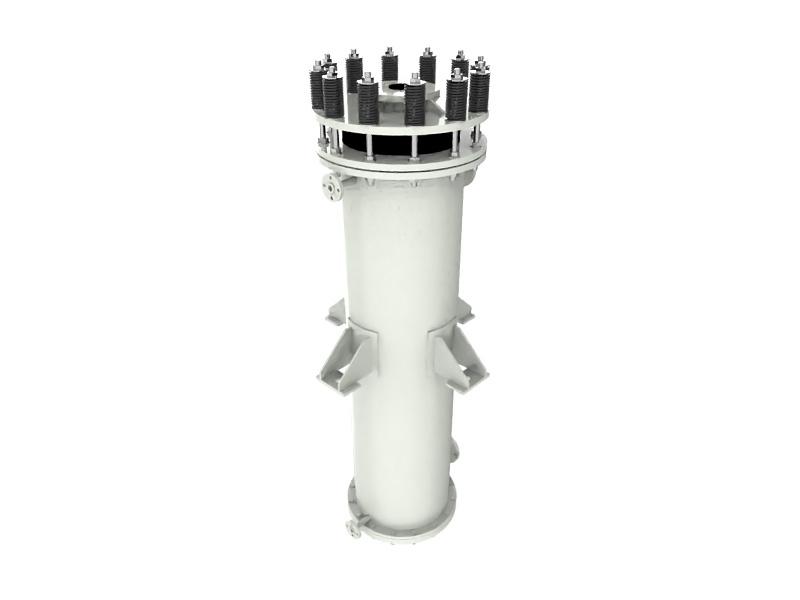

Spherical block hole type graphite heat exchanger, a highly durable and efficient heat transfer apparatus commonly employed in various industrial sectors such as chemical, petrochemical, and pharmaceutical industries for precise temperature control and effective heat exchange.
Pagamento:
TT L/C PayPal Westunion MoneygramOrigem do produto:
China， Anhui provincePorta de remessa:
ShanghaiTempo de espera:
1 MonthMOQ:
1Pacote:
Wooden caseCor:
CustomziedMaterial:
GraphiteTEMPERAÇÃO DE TRABALHO:
-40 to 165 ℃Pressão de trabalho:
≤1 Mpa
Product review
This series is sealed with Teflon and equipped with pressure springs as a compensation device. Two distinct flow paths are drilled into the graphite block, with the two groups positioned at right angles. Two different fluids exchange heat via these two flow paths.This series utilizes advanced processing technology, featuring high heat transfer efficiency, stability, reliability, impact resistance, and convenient maintenance. The maximum heat exchange area can reach up to 1000 square meters.
Product advantages
The Spherical Block Hole Type Graphite Heat Exchanger features high heat transfer efficiency, uniform fluid flow, excellent corrosion resistance, good mechanical strength, a large heat exchange area, stable operation, ease of maintenance, and a long service life.

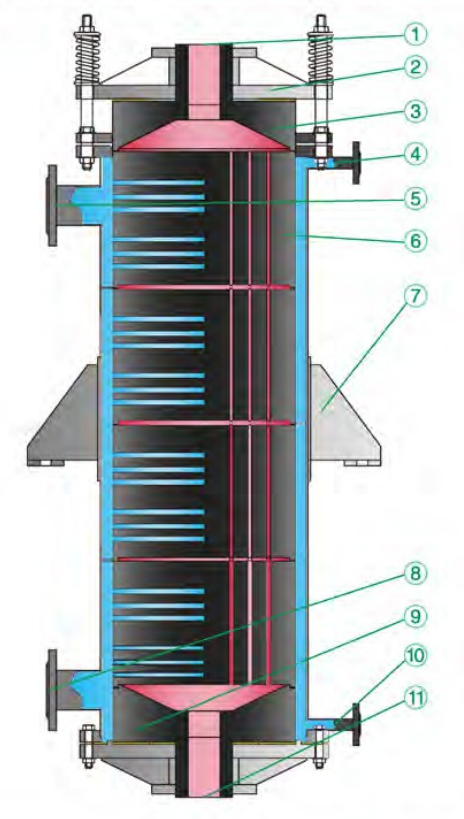

Structural diagram
| Parts details | |
| 1 | Material import |
| 2 | 0235 upper cover piate |
| 3 | Graphite upper heau |
| 4 | Vent |
| 5 | Outlet |
| 6 | Graphite heat exchange block |
| 7 | Equipment support |
| 8 | Intake |
| 9 | Graphite lower head |
| 10 | Vent |
| 11 | Material export |

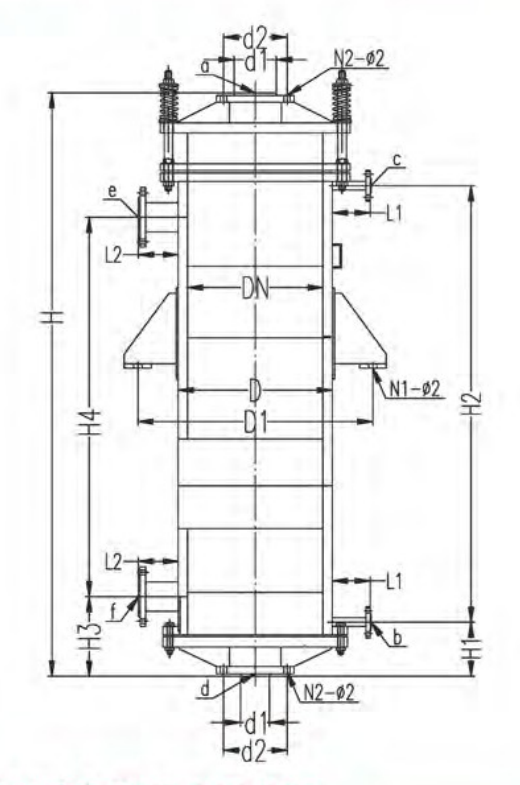

Drawing Specification Table for Tube
| Model | Nominal diameter mm | |||||
| a | b | c | d | e | f | |
| YKC 30 | 100 | 20 | 20 | 100 | 80 | 80 |
| YKC 40 | 125 | 20 | 20 | 125 | 100 | 100 |
| YKC 50 | 200 | 20 | 20 | 200 | 100 | 100 |
| YKC 60 | 250 | 20 | 20 | 250 | 100 | 100 |
| YKC 70 | 250 | 25 | 25 | 250 | 125 | 125 |
| VKC 80 | 250 | 25 | 25 | 250 | 125 | 125 |
| YKC 90 | 300 | 32 | 32 | 300 | 150 | 150 |
| YKC 100 | 300 | 32 | 32 | 300 | 150 | 150 |
| YKC 110 | 300 | 32 | 32 | 300 | 150 | 150 |
| YKC 120 | 400 | 32 | 32 | 400 | 250 | 250 |
| YKC 130 | 500 | 32 | 32 | 500 | 250 | 250 |
| Connection surface standard | Non-standard | HG/T 20592-2009 | HG/T 20592-2009 | Non-standard | HG/T 20592-2009 | HG/T 20592-2009 |
| Uses | Corrosive medium inlet or outlet | Exhaust port | Vent | Corrosive medium inlet or outlet | Water or steam inlet or outlet | Water or steam inlet or outlet |
Others
The Squirrel Cage Type Graphite Heat Exchanger features a unique squirrel cage design. Made of durable graphite, it offers excellent heat transfer performance, ensuring efficient fluid heating or cooling with reliable operation and long service life.
Detalhes
The shell-and-tube silicon carbide heat exchanger is composed of silicon carbide tubes sealed with tube sheets to form a tube bundle placed inside a cylindrical shell. Ends are equipped with end caps. One fluid flows inside the tubes and the other outside. It's suitable for highly corrosive chemicals, used for cooling, heating, condensation, etc.
Detalhes
Rectangular Hole Type Graphite Heat Exchanger: A heat transfer device with a rectangular hole pattern in graphite. It offers high thermal conductivity, excellent chemical resistance, and efficient fluid flow for reliable heat exchange in various industrial applications.
Detalhes
A floating head shell-and-tube graphite heat exchanger is a highly efficient and reliable heat transfer device. It consists of a shell, tubes, a floating head, and other components.
Detalhes
The tubular graphite heat exchanger is a type of heat transfer equipment fabricated from graphite. It exhibits excellent corrosion resistance and is extensively utilized in industries such as chemical and petrochemical for highly efficient heat exchange processes.
Detalhes
Um trocador de calor de placas metálicas transfere calor entre fluidos usando placas metálicas corrugadas para uma troca térmica eficiente.
Detalhes
A bomba magnética petroquímica TCA/E no LEAKAGE é projetada especificamente para aplicação na indústria petroquímica. Sua característica mais notável é a ausência de vazamento, o que melhora significativamente a segurança operacional.
Detalhes
The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.
Detalhes
