Novo Absorvedor de Filme Caindo em Grafite com Furo de Bloco Redondo

Novo Absorvedor de Filme Caindo em Grafite com Furo de Bloco Redondo

The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.

  • Pagamento:

    TT L/C PayPal Westunion Moneygram
  • Origem do produto:

    China, Anhui province
  • Porta de remessa:

    Shanghai
  • Tempo de espera:

    1 Month
  • MOQ:

    1
  • Pacote:

    Wooden case
  • Cor:

    customzied
  • Material:

    Graphite
  • TEMPERAÇÃO DE TRABALHO:

    ≤170℃
  • Pressão de trabalho:

    Vertical≤0.1Mpa,Horizontal≤0.4Mpa



Product review

The structure represents a modified version of the YKX graphite falling film absorber. The absorption heat exchange element features a structure without a central through hole. It is characterized by its compactness, relatively high material utilization rate, and is a gas absorption equipment with outstanding performance.



Product advantages

The New Round Block Hole Graphite Falling Film Absorber provides outstanding corrosion resistance, high thermal conductivity, efficient gas absorption capabilities, durability, and improved heat transfer performance.



Structural diagram





Parts details
1 Air inlet
2 Graphite gas-liquid mixing chamber
3 Liquid inlet
4 Graphite pressure stabilizing ring
5 Graphite distribution head
6 Vent
7 Cooling water outlet
8 Equipment support
9 Graphite heat exchange block
10 Cooling water inlet
11 Drain port
12 Gas liquid separation chamber
13 Tail gas outlet
14 Acid outlet





Drawing Specification Table for Tube

Model a.e Tube b.c Tube
DN
f.g Tube
DN
d Tube h Tube
D1 D2 D3 D4 D5 D6
KXG40 65 160 50 20 150 295 75 180
KXG50 75 180 65 20 200 350 100 210
KXG60 100 210 80 20 250 400 125 240
KXG70 100 210 100 25 250 400 200 350
KXG80 125 240 100 25 300 460 250 400
KXG90 125 240 150 25 300 460 250 400



Others

Deixe um recado
Se você estiver interessado em nossos produtos e deseja saber mais detalhes, deixe uma mensagem aqui, responderemos o mais rápido possível.
enviar

Produtos relacionados

GX type falling film shell and tube graphite absorber
Absorvedor de Filme Caindo em Grafite Industrial com Casca e Tubo

Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.

Detalhes
YKX graphite falling film absorber
Absorvedor de Filme Caído de Grafite Tipo Furo Redondo

The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.

Detalhes
GX Graphite Falling Film Absorber
Absorvedor de Filme Caído de Grafite de Casca e Tubo

The Shell and Tube Graphite Falling Film Absorber efficiently absorbs gases using corrosion-resistant graphite, ensuring uniform liquid distribution and optimal heat transfer.

Detalhes
no leakage stainless steel magnetic pump
Bombas Magnéticas de Acionamento para Processo Químico em Aço Inoxidável

The TCH no-leakage stainless steel magnetic pump represents an advanced type of industrial pump. It is characterized by a full-seal design, which effectively eliminates the possibility of leakage. Constructed from stainless steel, it exhibits excellent corrosion resistance. The high-quality magnets incorporated within the pump ensure a reliable magnetic drive, making it well-suited for application in a diverse range of industries.

Detalhes

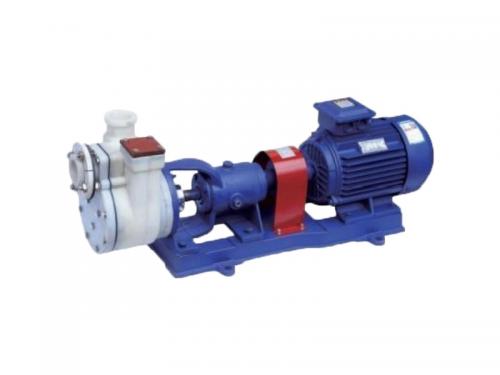

FZB Fluoroplastic Alloy Self-priming Pump
